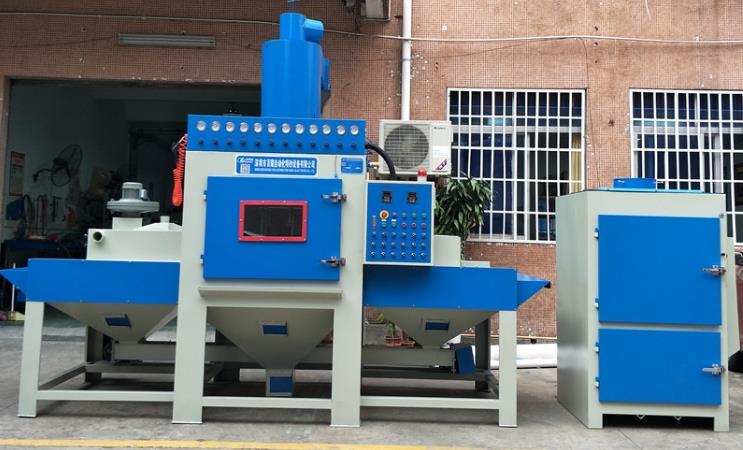

This machine adopts suction sand blasting, which uses compressed air to flow at high speed in the spray gun to form negative pressure to produce the ejection effect. The abrasive in the cyclone storage tank is sucked into the spray gun through the sand pipe, and then the nozzle is shot at high speed with the compressed air flow. To the surface of the workpiece to achieve the purpose of sandblasting. In the working state, compressed air and sand are sprayed while mixing, so that the compressed air can be fully utilized. The air flow and sand flow are easy to adjust, and the ideal mixing ratio can be obtained. The energy and sand consumption are low and the cleaning efficiency is high. , It is suitable for large-area cleaning and processing conveyor type automatic sandblasting machine on the surface of workpieces in electronics, aircraft, locomotive accessories, hardware, chemical industries and other industries.
12 spray guns conveying automatic sandblasting machine, 18 spray guns Shenzhen conveying automatic sandblasting machine price:
14 belt type automatic sand blasting machine, 16 plane type automatic sand blasting machine
Automatic sandblasting machine with 6 spray guns, automatic sandblasting machine with 8 spray guns. 10 spray gun conveying sandblasting machine,
12 spray guns conveying automatic sandblasting machine, 18 spray guns Shenzhen conveying automatic sandblasting machine price:
14 belt type automatic sand blasting machine, 16 plane type automatic sand blasting machine
[Main features of Baiyao automatic sandblasting machine]:
The V-belt is used to convey the workpiece without sand accumulating. The belt speed can be adjusted according to the requirements of the sandblasting process. The angle of each spray gun can be adjusted freely to realize automatic frequency conversion swing and fixed-point sandblasting. It has strong flexibility and applicability. Wide; adopt advanced cyclone separation system configuration, good dust separation effect, high sandblasting efficiency; adopt PLC electric advanced control system, high degree of automation, good stability, low failure rate; nozzle adopts special high wear-resistant ceramic material, use Long life; independent bag type dust removal system, good dust extraction and ventilation effect; (also optional; pulse filter type dust removal); abrasive recycling adopts a combination of spiral conveying and pneumatic recycling, and the recycling stability is good.
Application scope of automatic sandblasting machine:
Pre-treatment of electroplating and spraying to improve adhesion; heat treatment, descaling, residue removal, rust removal, degreasing, and refurbishment of old parts of various molds, castings, stamping parts, metal and non-metal surfaces; all ceramic products, glass Finishing and atomization of products, plastic products; surface treatment of all metal products, glass, plastic crafts, jewelry, glasses, clocks and watches.
Applicable working conditions
1) Environmental conditions: The machine should work normally under the environmental temperature of -10~+45℃ and relative humidity not more than 85%;
2) Power supply conditions: single-phase AC power supply, 220v, 50Hz, the maximum power of this machine is shown in Table-3;
3) Air source conditions: The gauge pressure of the compressed air connected to the machine is 0.4~0.7MPa, and the compressed air flow rate is not less than 1m3/min.
The user should meet the above conditions on site
