The nozzle of the rotary automatic sandblasting machine adopts special high wear-resistant boron carbide material
- 2020-03-14-

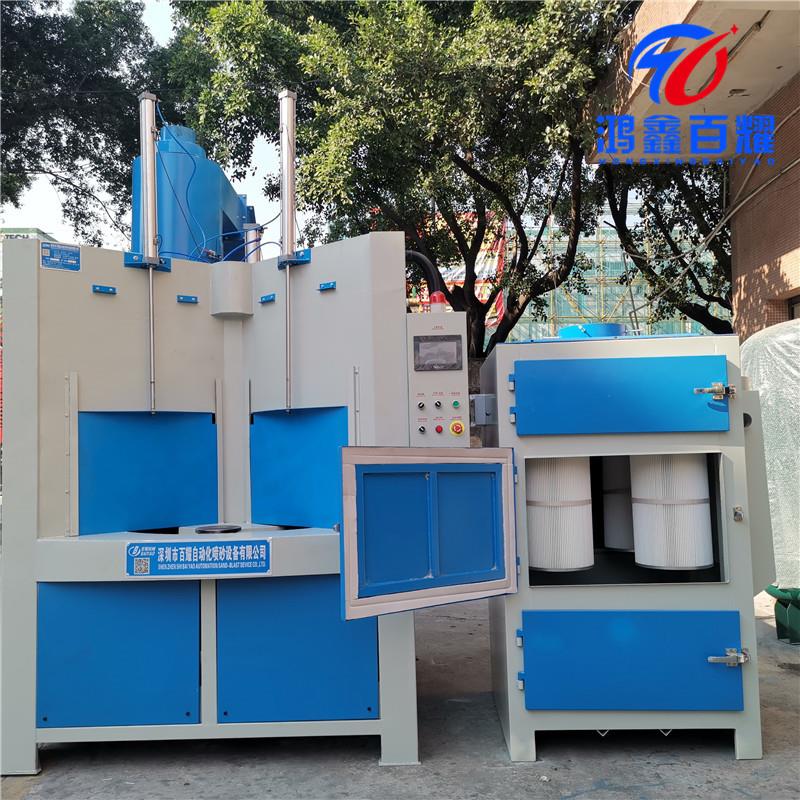

Features of rotary automatic sandblasting machine:

1. The rotary table type automatic sandblasting machine is divided into intermittent rotary table type automatic sandblasting machine and continuous rotary table type automatic sandblasting machine. The rotary table type automatic sandblasting machine clamps the workpiece on the small rotary table.

On the disc fixture, when the small assembly plate is driven by the large turntable to move to the sandblasting processing station, the workpiece is driven by the small turntable to rotate slowly, and the spray gun moves up and down in two pairs.

The surface of the processed workpiece is sandblasted. After the processing is completed, the pneumatic door opens automatically. After the picking and placing of the workpiece is completed, press the start button, the big turntable

Rotate and repeat the cycle. The inlet and outlet of the work piece adopts pneumatic lifting door, which can automatically open and close when the work piece enters and exits.

2. The nozzle is made of special high wear-resistant boron carbide material with long service life

3. Automatic intermittent rotation of the turntable (continuous rotation can also be designed) stable operation, stable clamping, and quick and convenient workpiece picking and placing;

4. Special cyclone separation system, high degree of automation, good stability and low failure

5. The PLC electrical control system is adopted to ensure the uniformity of the product sandblasting effect;

6. Independent filter core dust removal system, after careful calculation, good ventilation performance, environmental protection and pollution-free.

1. The work piece is conveyed by a triangular belt without sand accumulation. The speed of the belt can be adjusted by frequency conversion according to the requirements of the sandblasting process;

2. The angle of each spray gun can be adjusted freely. The gun frame can realize automatic frequency conversion swing and fixed-point sandblasting, which has strong flexibility;

3. Adopting advanced upper cyclone separation system configuration, good dust separation effect and high sandblasting efficiency;

4. Adopt PLC electrical advanced control system, with high degree of automation, good stability and low failure rate;

5. The nozzle is made of special high wear-resistant boron carbide material with long service life;

6. Independent bag type dust removal system, good dust extraction and ventilation effect;

7. Abrasive recycling adopts a combination of spiral conveying and pneumatic recycling, and the recycling is stable and good.
